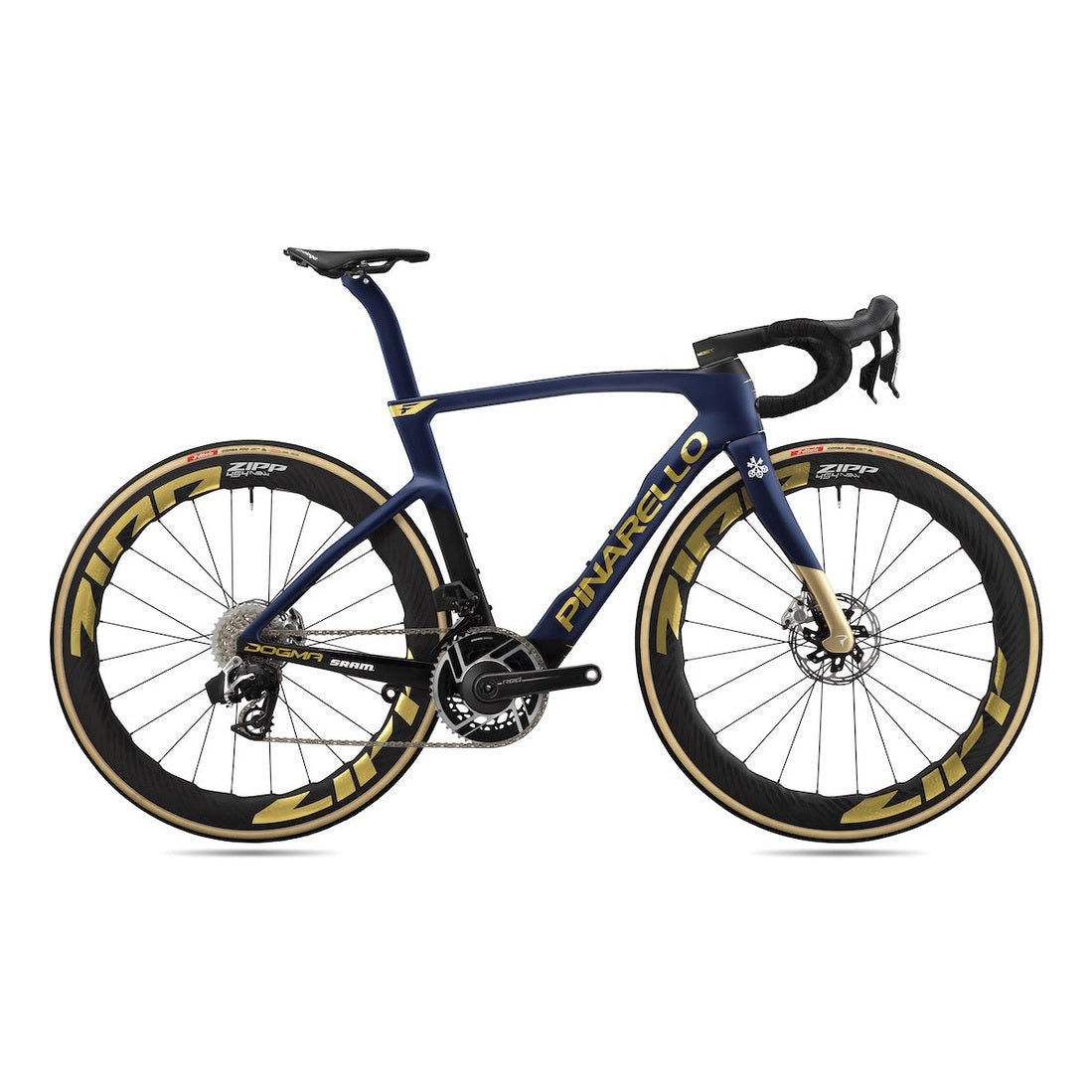

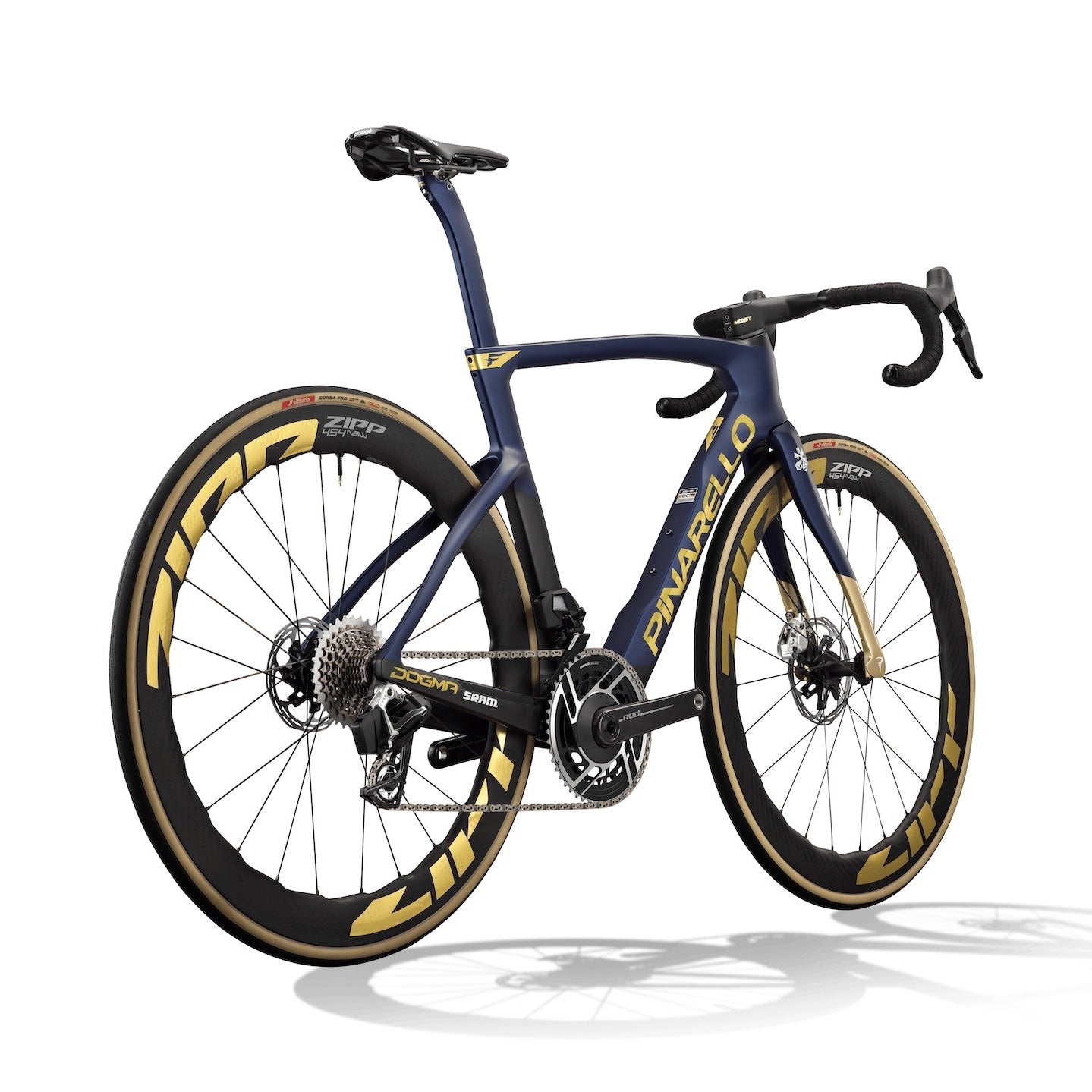

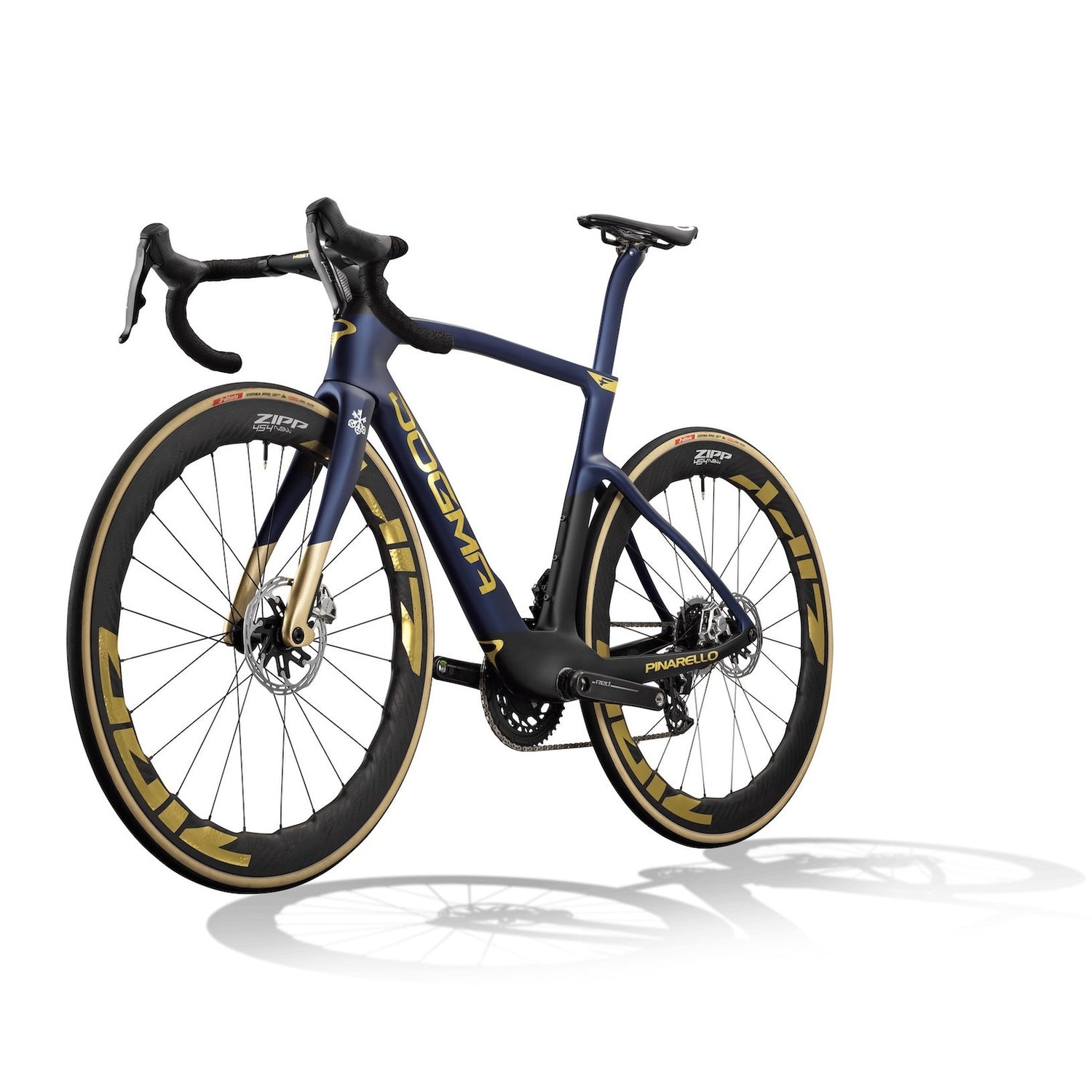

Pinarello Dogma F Disk Red AXS PM Zipp 454 NSW: Aerodynamic Evolution and Structural Stiffness

The Pinarello Dogma F Disk represents the latest evolution of the legendary Dogma line, developed and tested by the Ineos Grenadiers team. The new carbon fiber lay-up delivers exceptional tensile strength, enabling superior performance and unprecedented lateral stiffness. The down tube has been completely redesigned to reduce thickness, significantly improving frontal aerodynamic performance and the frame’s overall aerodynamic drag. This configuration ensures optimal air penetration, a crucial element for those seeking speed and efficiency over long distances.

Aerodynamic Innovations and Integrated Design

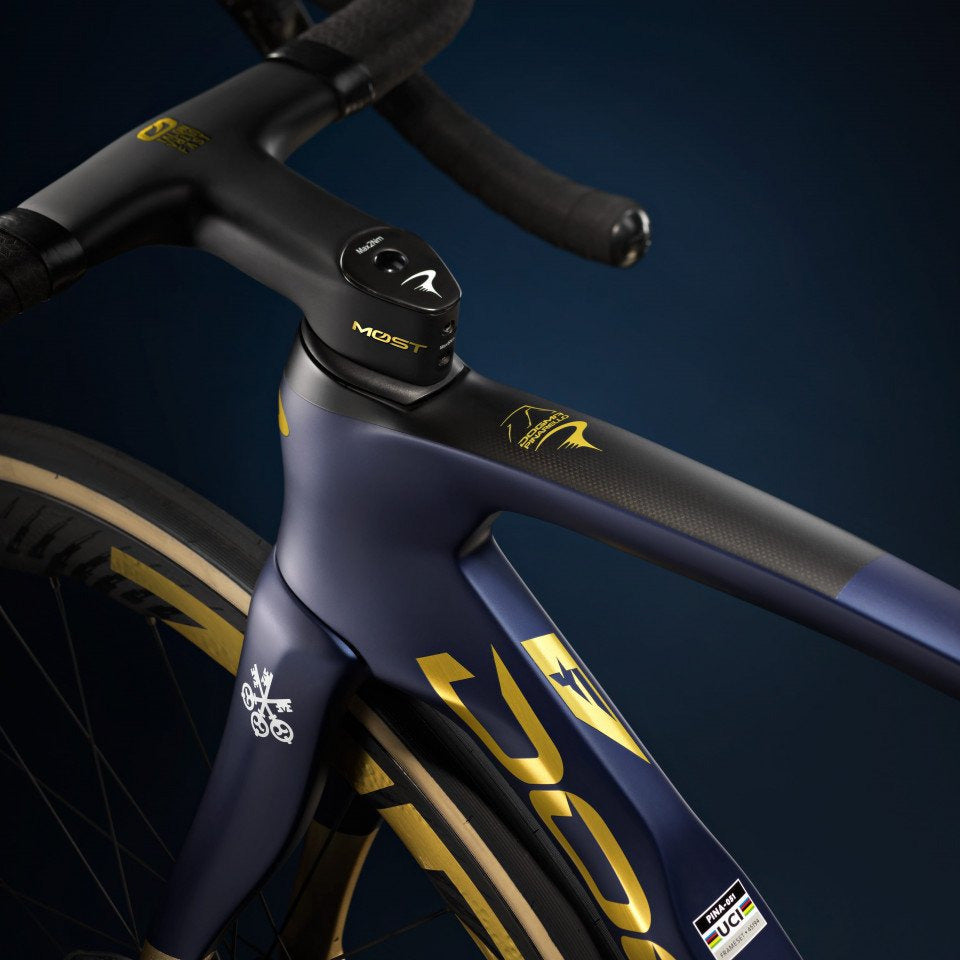

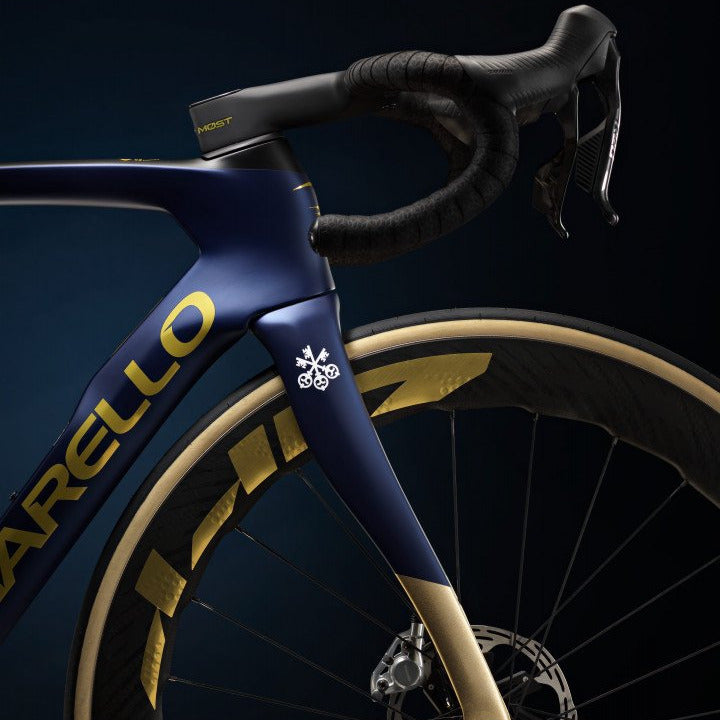

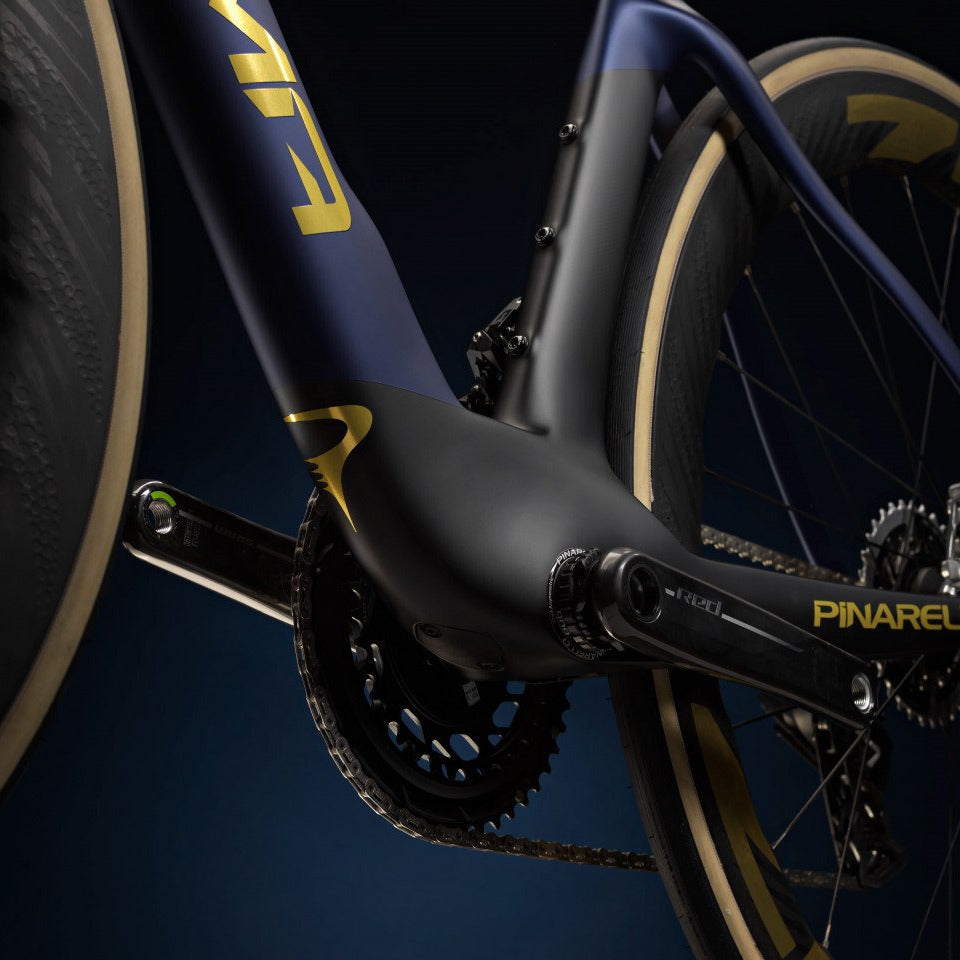

The new down tube of the Dogma F is rotated by 3.5° to create a keel shape that improves aerodynamic performance by 1.2% in the bottom bracket area. The “nose” shape of the head tube, an evolution of the design introduced on the Dogma F8, has been refined by reducing volume and width by 8 mm, ensuring a slimmer profile and better aerodynamic penetration. The new shorter thru-axles and the integration of the fork bolt directly into the carbon eliminate protruding elements, further optimizing airflow and the bicycle’s overall design.

Components and Technical Specifications of the Build

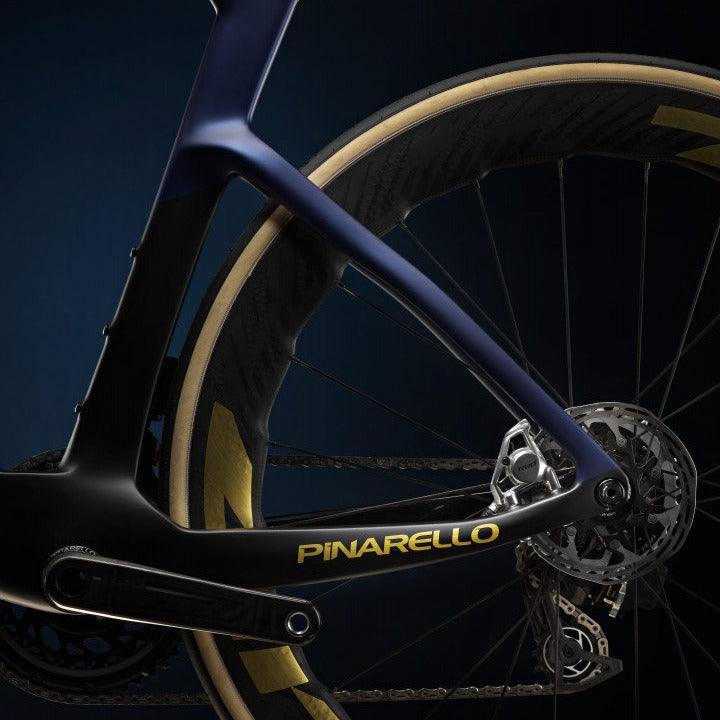

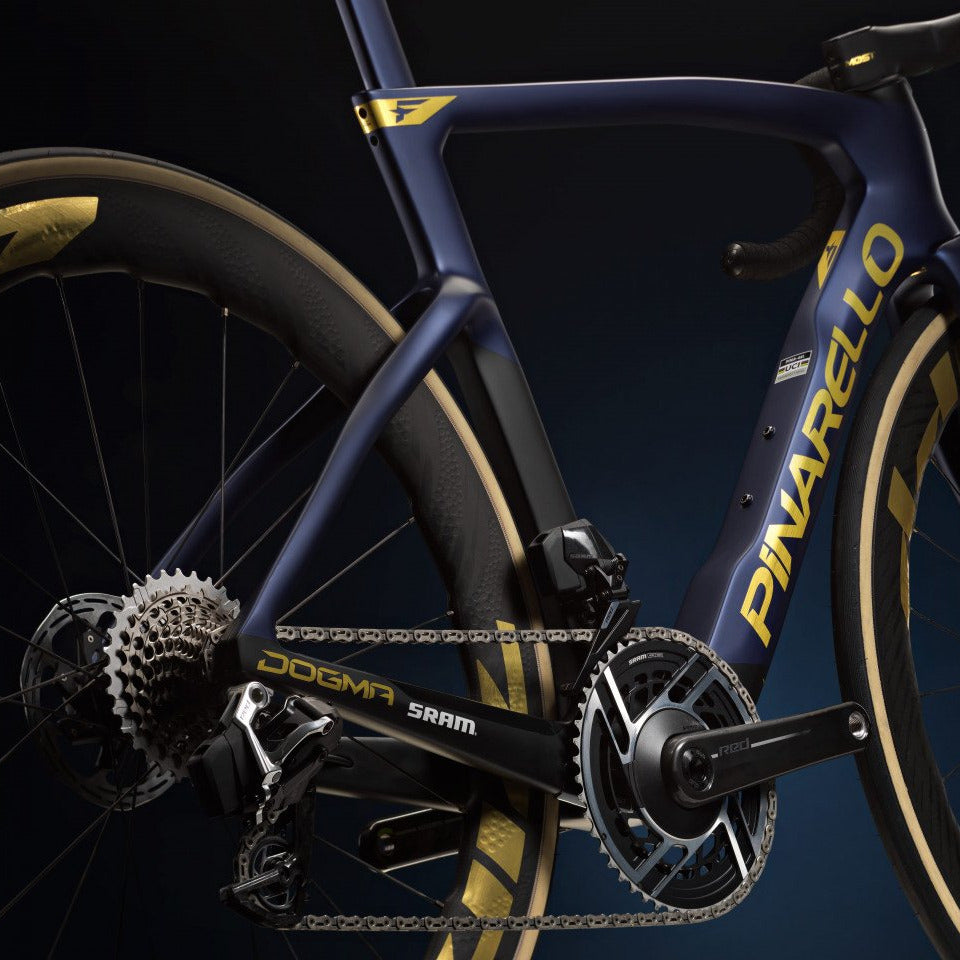

The Pinarello Dogma F Disk Red AXS PM Zipp 454 NSW is equipped with the Sram Red AXS groupset, the most advanced electronic shifting system available on the cycling market. The build includes hydraulic disc brakes for powerful, modulation-friendly braking in all weather conditions. The frame integrates the rear derailleur hanger into the carbon, improving both aesthetics and aerodynamic performance. This bike is designed for riders seeking maximum performance, combining structural lightness with stability and responsiveness on the road.

Technical Features

• Frame: TorayCa T1100 1K Dream Carbon with Nanoalloy technology, TiCR™ cable routing, Italian bottom bracket, UCI approved.

• Fork: F Onda Fork with ForkFlap™, 1.5' upper and lower steerer, Ultra Light Headset bearings.

• Crankset: Sram Red AXS Powermeter 48-35.

• Front derailleur: Sram Red AXS.

• Rear derailleur: Sram Red AXS.

• Cassette: Sram Red AXS 10-33.

• Front brake: Sram Red AXS, 160 mm rotor.

• Rear brake: Sram Red AXS, 160 mm rotor.

• Handlebar: Most Talon Ultra Fast.
• Bar tape: Most.

• Saddle: MOST Linx ULTRAFAST SUPERFLOW L Carbon Large 145mm.

• Seatpost: Pinarello Aero seatpost with 3D-printed titanium saddle clamp and titanium hardware.

• Saddle clamp: TwinForce saddle clamp, titanium bolts.

• Tires: Vittoria race tlr.
• Wheels: Zipp 454 NSW Gold decal.

• Axles: Custom ultralight 12x100 and 12x142 axle, tool-free removal.

• Bottle cages: TRAP PACF Ø 74mm, Fly Bottle Pinarello Bottle 550ml Black.

• Color: Pinarello Q36.5 Replica.
