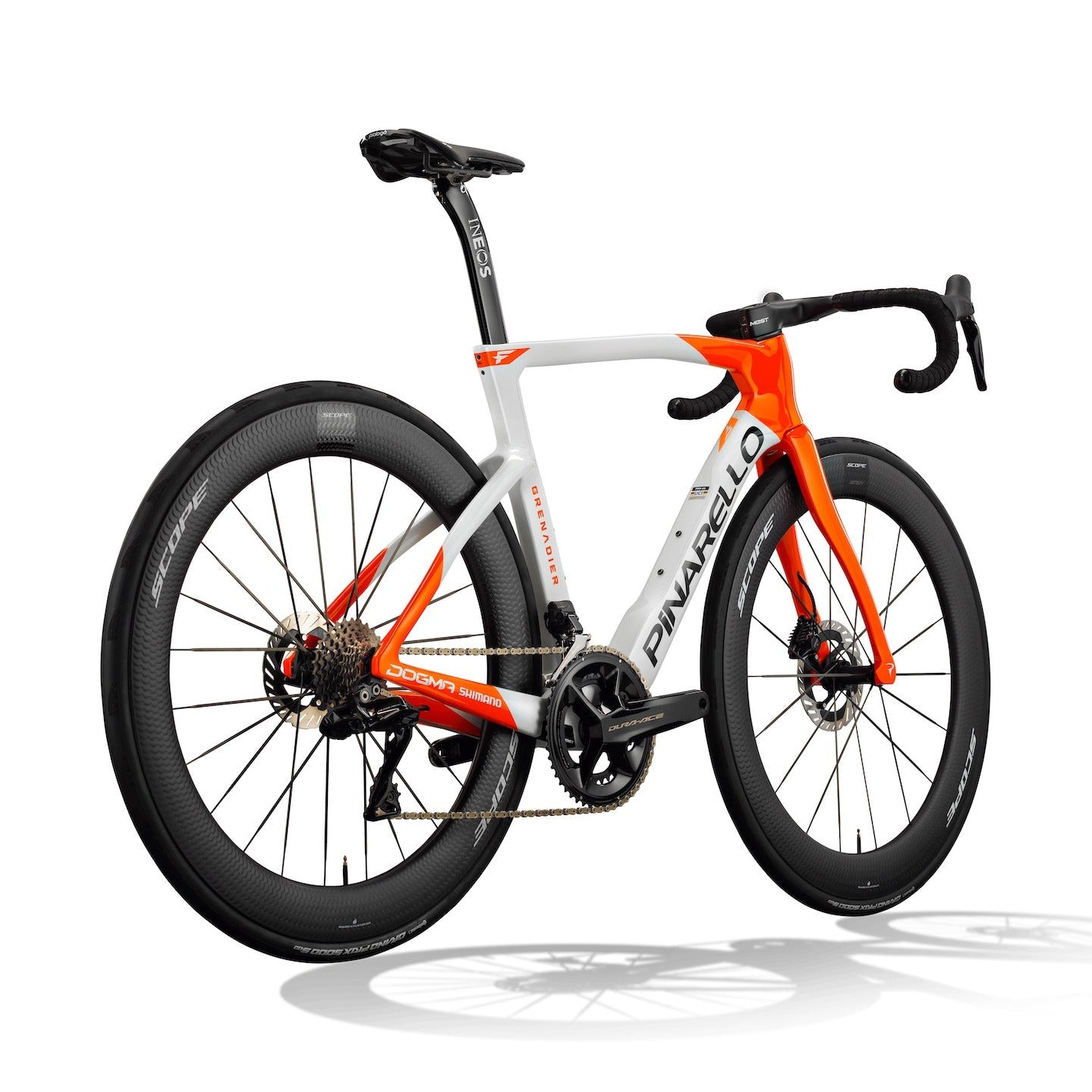

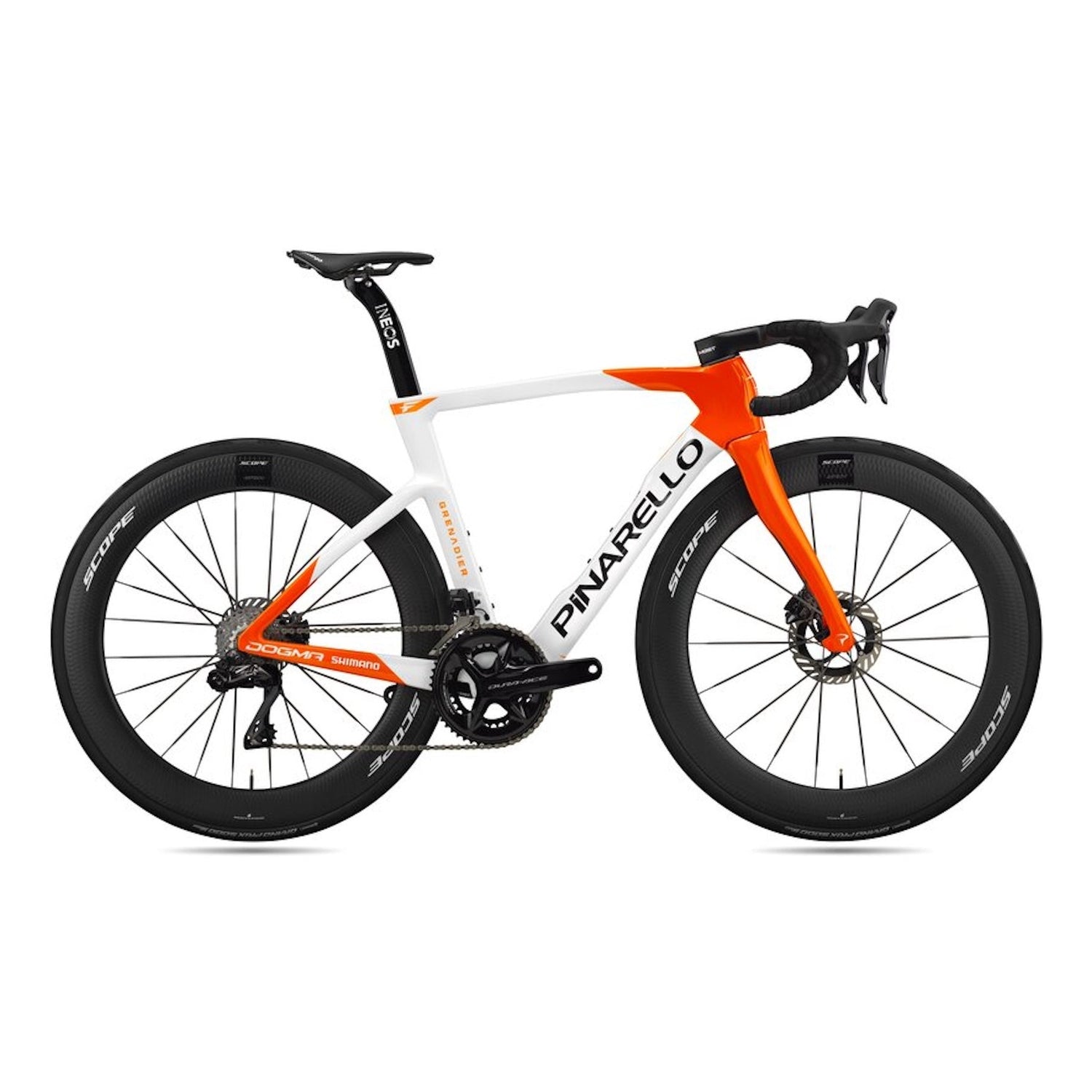

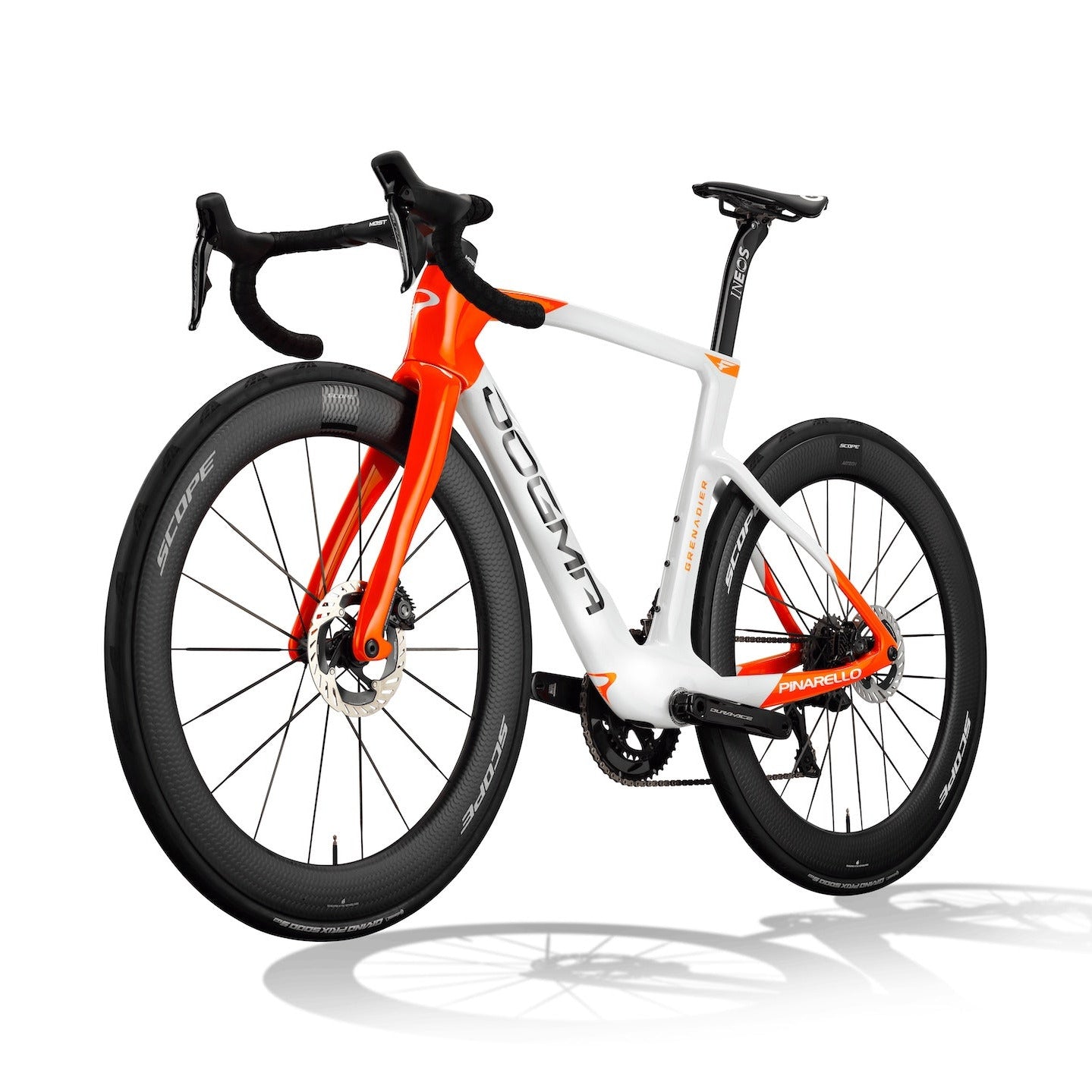

Pinarello Dogma F Disk Dura Ace Di2: Aerodynamic Evolution and Structural Stiffness
The Pinarello Dogma F Disk represents the latest evolution of the legendary Dogma line, developed and tested by the Ineos Grenadiers team. The new carbon fiber lay-up offers exceptional tensile strength, enabling superior performance and unprecedented lateral stiffness. The down tube has been completely redesigned to reduce thickness, significantly enhancing front aerodynamic performance and the overall aerodynamic resistance of the frame. This configuration ensures optimal air penetration, a crucial factor for those seeking speed and efficiency over long distances.
Aerodynamic Innovations and Integrated Design
The new down tube of the Dogma F is rotated by 3.5° to create a keel-shaped profile that improves aerodynamic performance by 1.2% in the bottom bracket area. The "nose" shape of the head tube, an evolution of the design introduced on the Dogma F8, has been refined by reducing volume and width by 8 mm, ensuring a sleeker profile and better aerodynamic penetration. The new shorter thru-axles and integration of the fork bolt directly into the carbon eliminate protruding elements, further optimizing airflow and the overall bike design.
Components and Technical Specifications of the Configuration
The Dogma F Disk Dura Ace Di2 is equipped with the Shimano Dura Ace Di2 groupset, the most advanced electronic shifting system available in the cycling market. The configuration includes hydraulic disc brakes for powerful and modulated braking in all weather conditions. The frame integrates the rear derailleur hanger into the carbon, enhancing both aesthetics and aerodynamic performance. This bike is designed for riders seeking maximum performance, combining structural lightness with road stability and responsiveness.
Technical Features
- Frame: TorayCa T1100 1K Dream Carbon with Nanoalloy technology, TiCR™ cable routing, Italian bottom bracket, UCI approved.
- Fork: F Onda Fork with ForkFlap™, 1.5' upper and lower headset, Ultra Light Headset bearings.
- Crankset: Shimano Dura-Ace R9200 Power Meter, HollowTech 2 12S 50-34.
- Front Derailleur: Shimano Dura Ace Di2 FD-9200 11-speed.
- Rear Derailleur: Shimano Dura Ace Di2 RD-9200 12-speed 11-30.
- Cassette: Shimano Dura Ace 11-30.
- Front Brake: Dura Ace BR-R9200, 2-piston caliper, 160 mm rotor.
- Rear Brake: Dura Ace BR-R9200, 2-piston caliper, 140 mm rotor.
- Handlebar: Most Talon Ultra Fast.
- Tape: Most.
- Saddle: MOST Linx ULTRAFAST SUPERFLOW L Carbon Large 145mm.
- Seatpost: Pinarello Aero seatpost with 3D printed titanium saddle clamp and titanium bolts.
- Saddle Clamp: TwinForce saddle clamp, titanium bolts.
- Tires: Continental GP5000.
- Wheels: Scope ArTech 4 45db.
- Hubs: Custom ultralight 12x100 and 12x142 axles, tool-free removal.
- Bottle Cage: TRAP PACF Ø 74mm, Fly Bottle Pinarello Bottle 550ml Black.
- Color: Ineos Replica.
