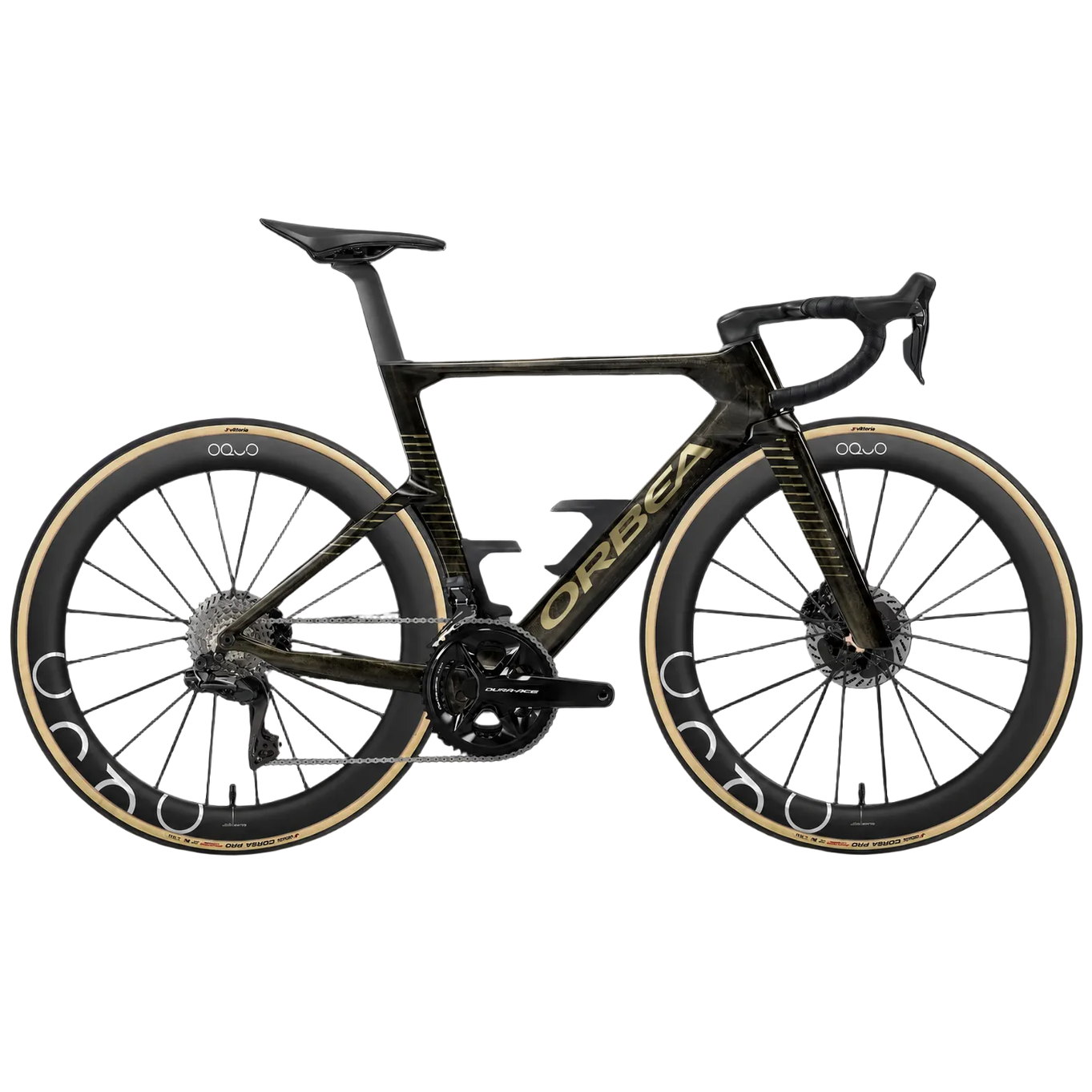

Orbea Orca Aero M10i LTD PWR - Gold white
Orbea Orca Aero M10i LTD PWR - Gold white - 53 / Gold is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Installment Payments
PayPal
The PayPal service allows you to pay for online purchases with just a few clicks, in a completely free and secure way. After selecting this payment method, you will be redirected to the dedicated page where you can enter your PayPal account details (if you do not have an account, you can sign up for free or proceed directly with the payment). Once the process is complete, you will receive an email confirmation of the successful payment and order receipt.
- Transaction fee: free
- Settlement time: instant
With PayPal, you can also pay in 3 convenient interest-free installments.
PLEASE NOTE: the maximum amount eligible for installments per single order is €2,000
Klarna
- Pay in 3 interest-free installments.
- Pay with Visa, Mastercard, Amex, Postepay and major Italian prepaid cards.
- Klarna is available in: Austria, Belgium, Finland, France, Germany, Greece, Ireland, Italy, Netherlands, Portugal, Spain.
PLEASE NOTE: the maximum amount eligible for installments per single order is €3,000
For more information about Klarna: https://www.klarna.com/international/
Scalapay
- Pay in 3 interest-free installments.
- Pay with Visa, Mastercard, Amex, Postepay and major Italian prepaid cards.
- Create a Scalapay account in just 2 minutes – registration is free and approval is immediate.
- Receive your order immediately and split the total into 3 convenient monthly installments, interest-free.
- Scalapay is available in: Italy, Belgium, Germany, Spain, France, Netherlands, Austria, Portugal, Finland.
PLEASE NOTE: the maximum amount eligible for installments per single order is €1,000
- If you purchase with Scalapay, you will receive your order immediately and pay in 3 installments. Please note that the installments will be assigned to Incremento SPV S.r.l., related parties and their assignees, and that you authorize such assignment.
Support
In case of issues with the financing method, overdue installments, errors during account creation or payment method changes, please contact SCALAPAY support.
Heylight
- Pay in 3, 4, 6 or 9 interest-free installments.
- Once you select Heylight as your payment method, you will be redirected to the financial provider’s page where you will be asked to enter your personal details and upload certain documents to verify your creditworthiness.
- The order will be considered confirmed only after Heylight approves the financing request.
- Heylight is available in Italy only.
PLEASE NOTE: the maximum amount eligible for installments per single order is €5,000
For more information about Heylight: https://heylight.com/en
Product details
Product details
Orbea Orca Aero: aerodynamic bicycle of the new generation
The new Orbea Orca Aero represents the ultimate evolution in the field of aerodynamic road bikes, developed through a rigorous wind tunnel optimization process and road testing with the Lotto-Intermarché team. Every element of the frame has been refined millimeter by millimeter to reduce aerodynamic drag and maximize energy efficiency. Orbea's Total System Approach does not consider the bike in isolation, but the entire bike-rider system, ensuring that every watt of power is transferred in the most effective way possible. According to wind tunnel tests, this setup delivers a saving of 5.1 watts at 50 km/h, an advantage that remains constant regardless of speed and wind angle.
Geometry and positioning optimized for speed

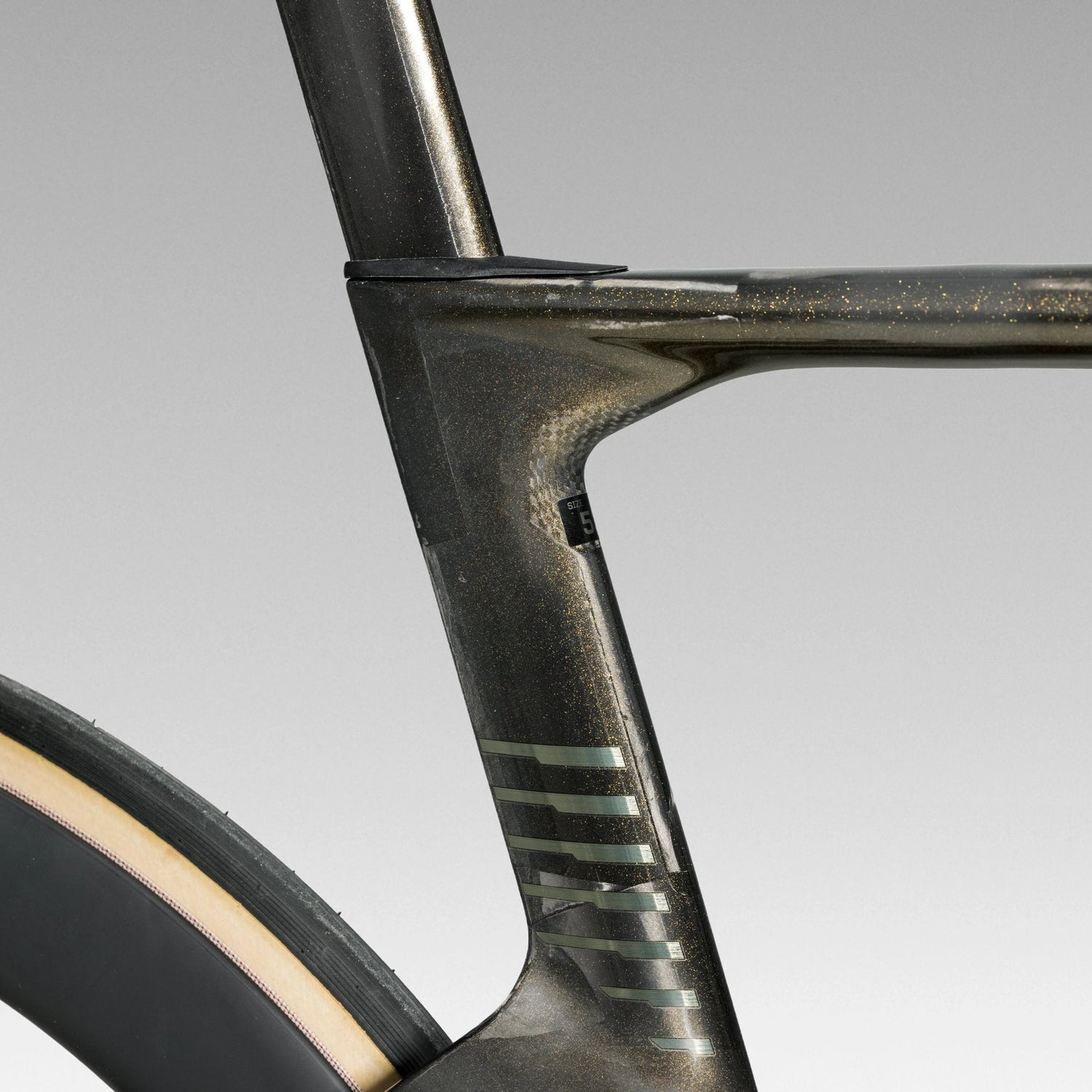

The Orca Aero M10i LTD PWR features a 78 mm drop of the bottom bracket, the lowest on the market, positioning the rider in a setup that directly reduces the frontal area exposed to the wind. This fully aerodynamic design improves stability and control at high speeds, reducing body movement while pedaling. The cockpit offers 13 different handlebar sizes and up to 40 mm of spacers under the stem, allowing every rider to find the ideal position. The new OQUO RA57 LTD carbon wheels and the aerodynamic OC RA11 seatpost complete the system, contributing to a further saving of about 14 watts at 50 km/h on flat terrain. Structural stiffness reaches 93 Nm/° with a frame weight of approximately 900 g, offering an exceptional balance between efficiency and lightness.
Modern versatility and future compatibility

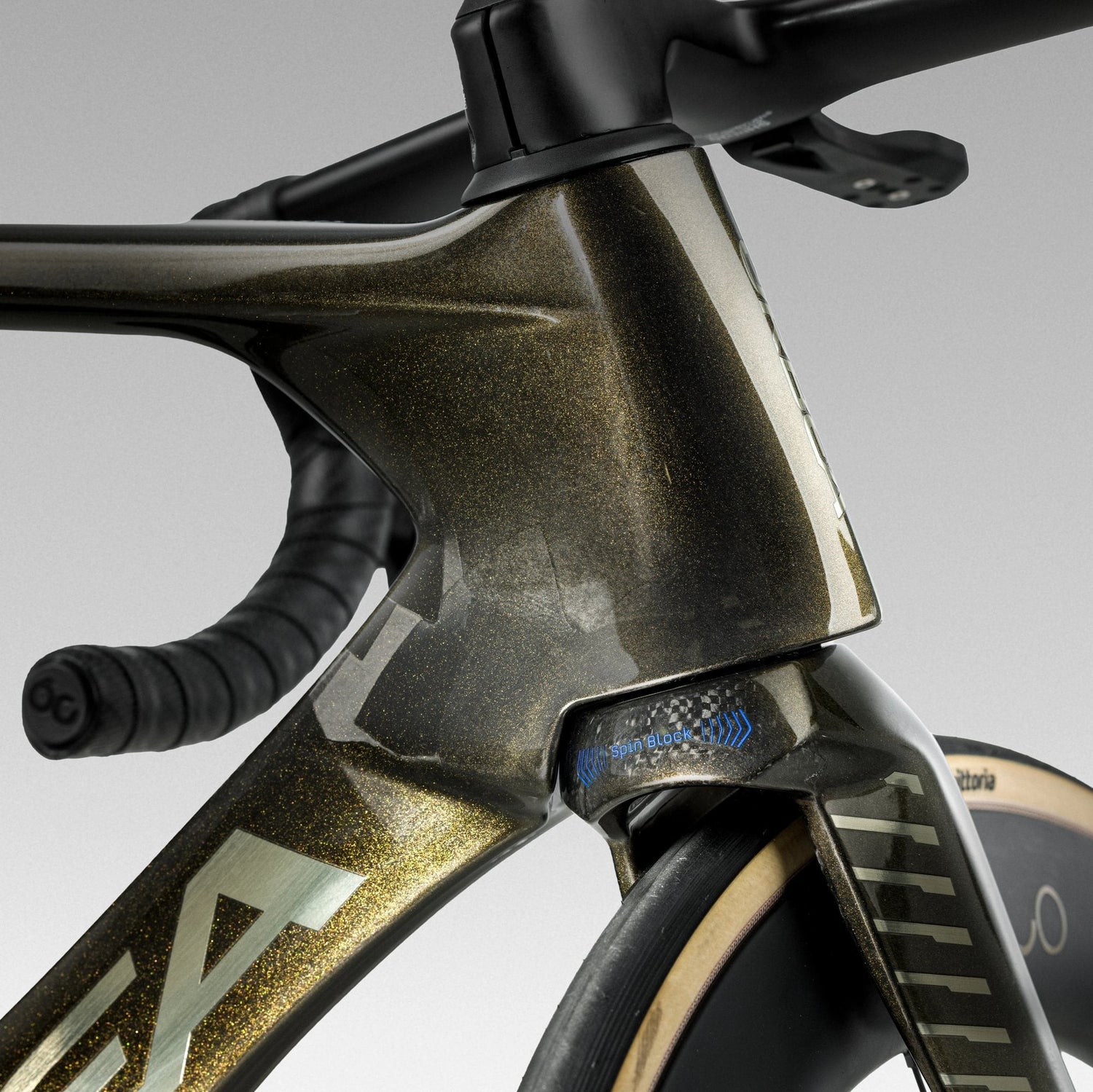

This professional road bike accepts tires up to 37 mm, making it one of the most versatile in the WorldTour while maintaining superior aerodynamic performance with 29 to 35 mm tires. The increased clearance allows savings of 6-7 watts at 40 km/h on cobblestones or rough asphalt thanks to reduced vibration losses. The bike is designed exclusively for electronic groupsets with Di2 integration through the bottom bracket, equipped with a UDH universal hanger and a 90° Spinblock steering limiter. The OMX carbon frame with monocoque construction guarantees lightness and stiffness, while compatibility with power meters and Speed release technology ensure compatibility with current and future standards in professional cycling.
Technical features

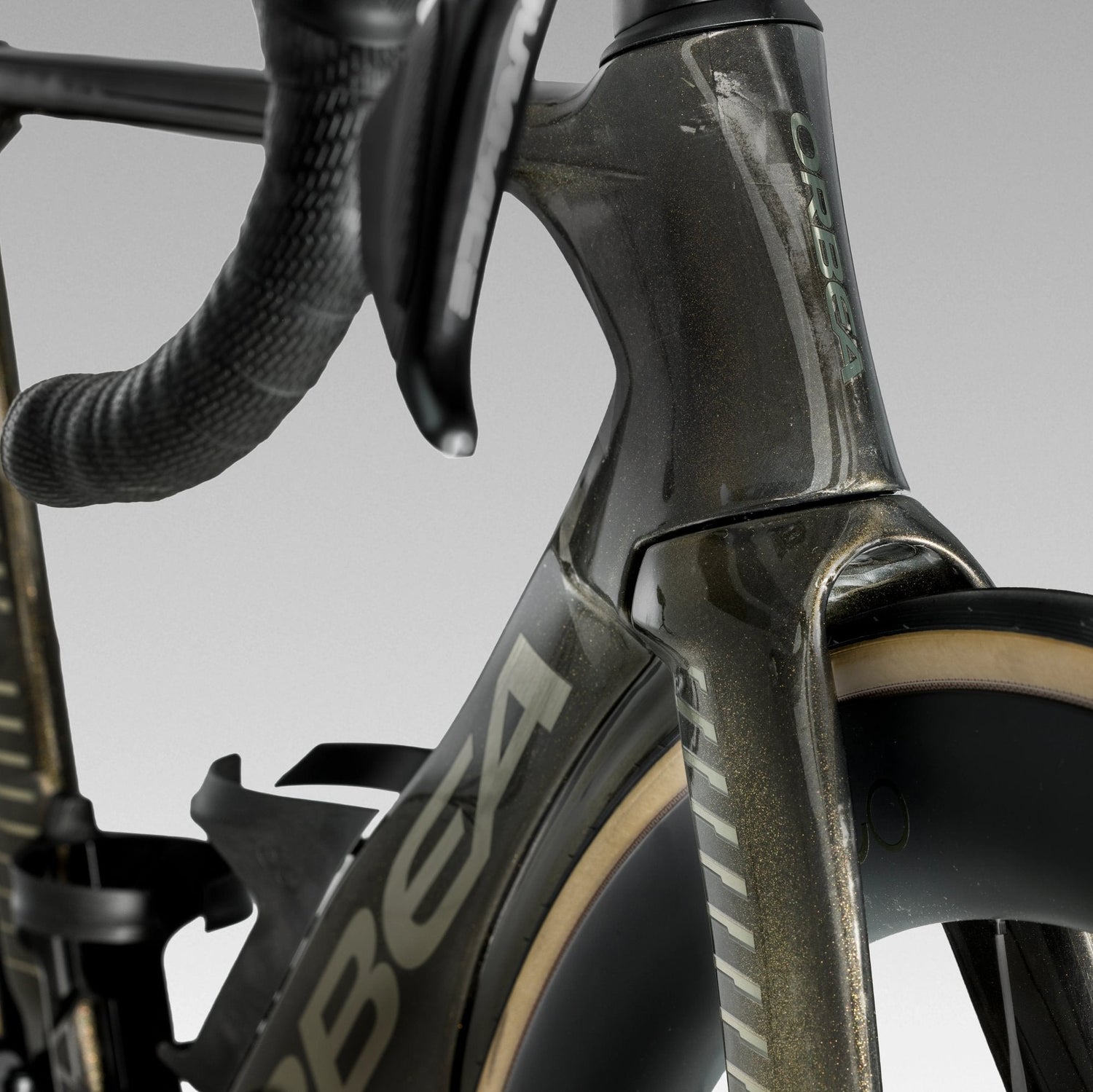

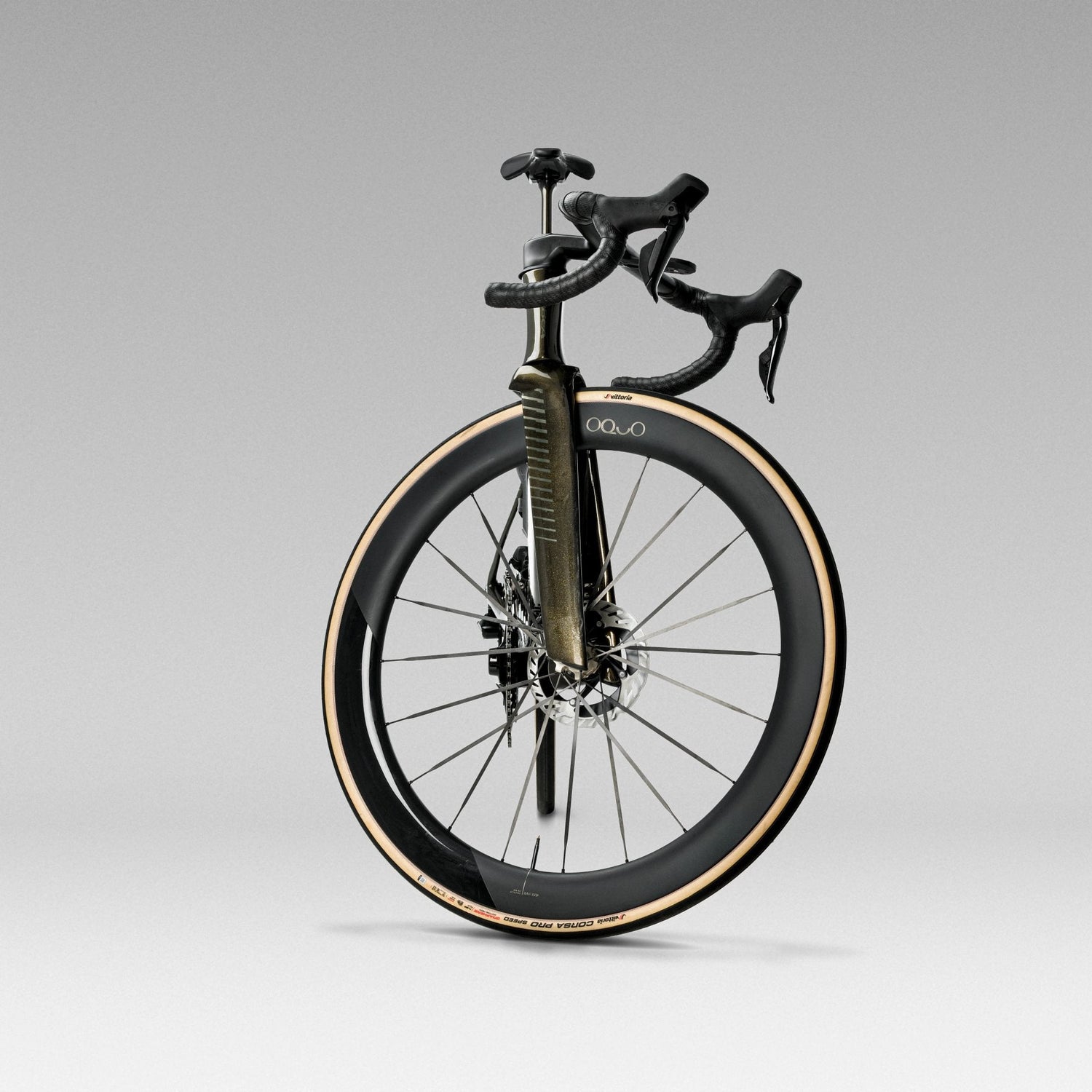

- Fork: Orbea Orca Aero OMX ICR, full carbon, 1-1/8" - 1.5" tapered head tube compatible, Thru axle 12x100mm, thread M12x2 P1, Speed release compatible dropout.

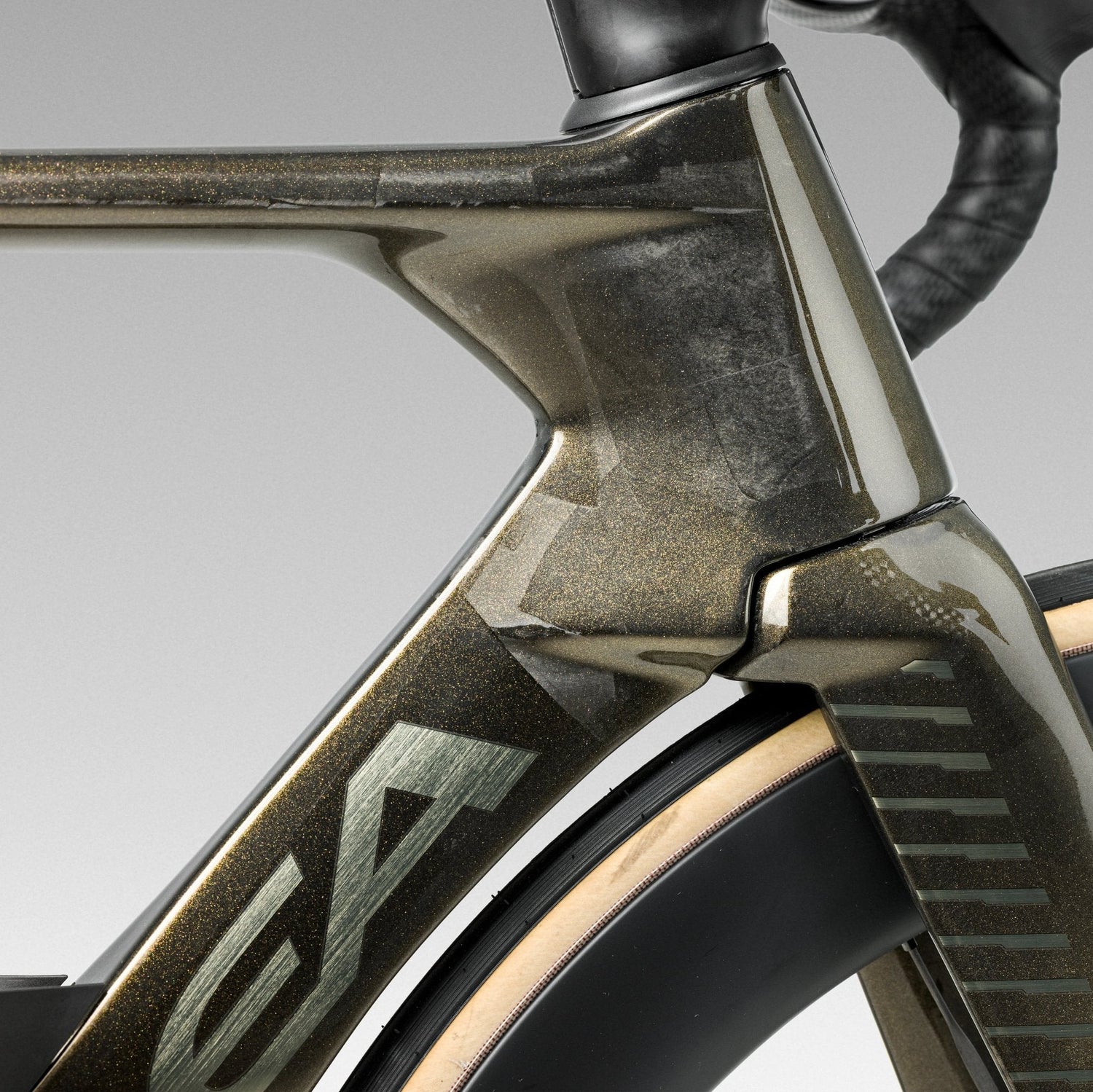

- Frame: Orbea Orca Aero Carbon OMX disc, monocoque construction, HS 1.5", BB 386, powermeter compatible, Thru Axle 12mm x 142mm rear, thread M12x2 P1, Speed release compatible, internal cable routing, EC/DC compatible.
- Headset: FSA 1-1/2" Integrated Aluminium Cup
- Crankset: Shimano Dura-Ace R9200-P Power Meter 36x52t
- Shifters: Shimano R9270
- Cassette: Shimano Dura-Ace R9200 11-34t 12-Speed
- Rear derailleur: Shimano Dura-Ace Di2 R9250
- Front derailleur: Shimano Dura-Ace Di2 R9250
- Chain: Shimano CN-9100

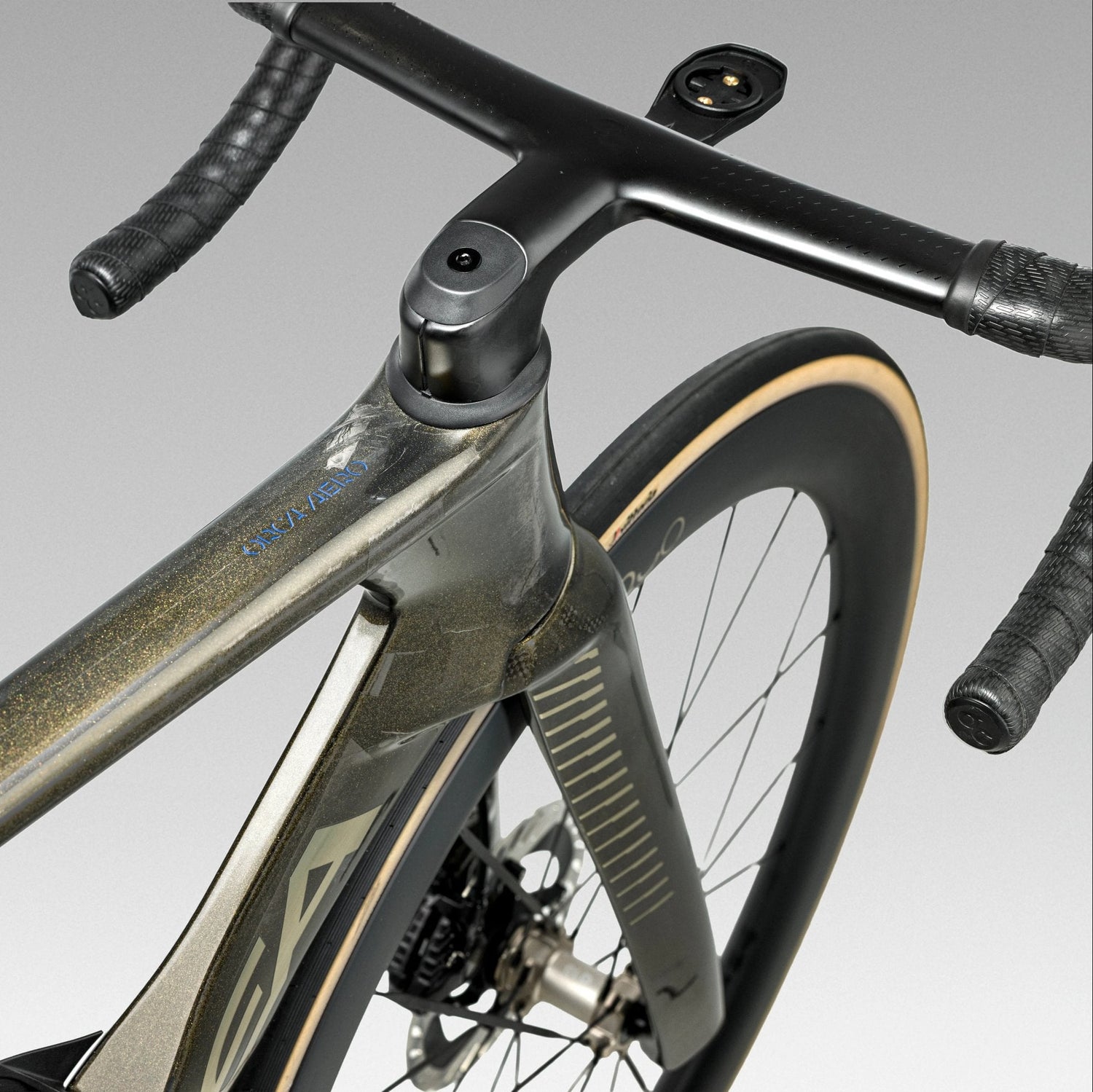

- Handlebar: Integrated Bar and Stem OC SH-RA10, Road Aero Carbon, Reach 80, Drop 125
- Brakes: Shimano R9270 Hydraulic Disc

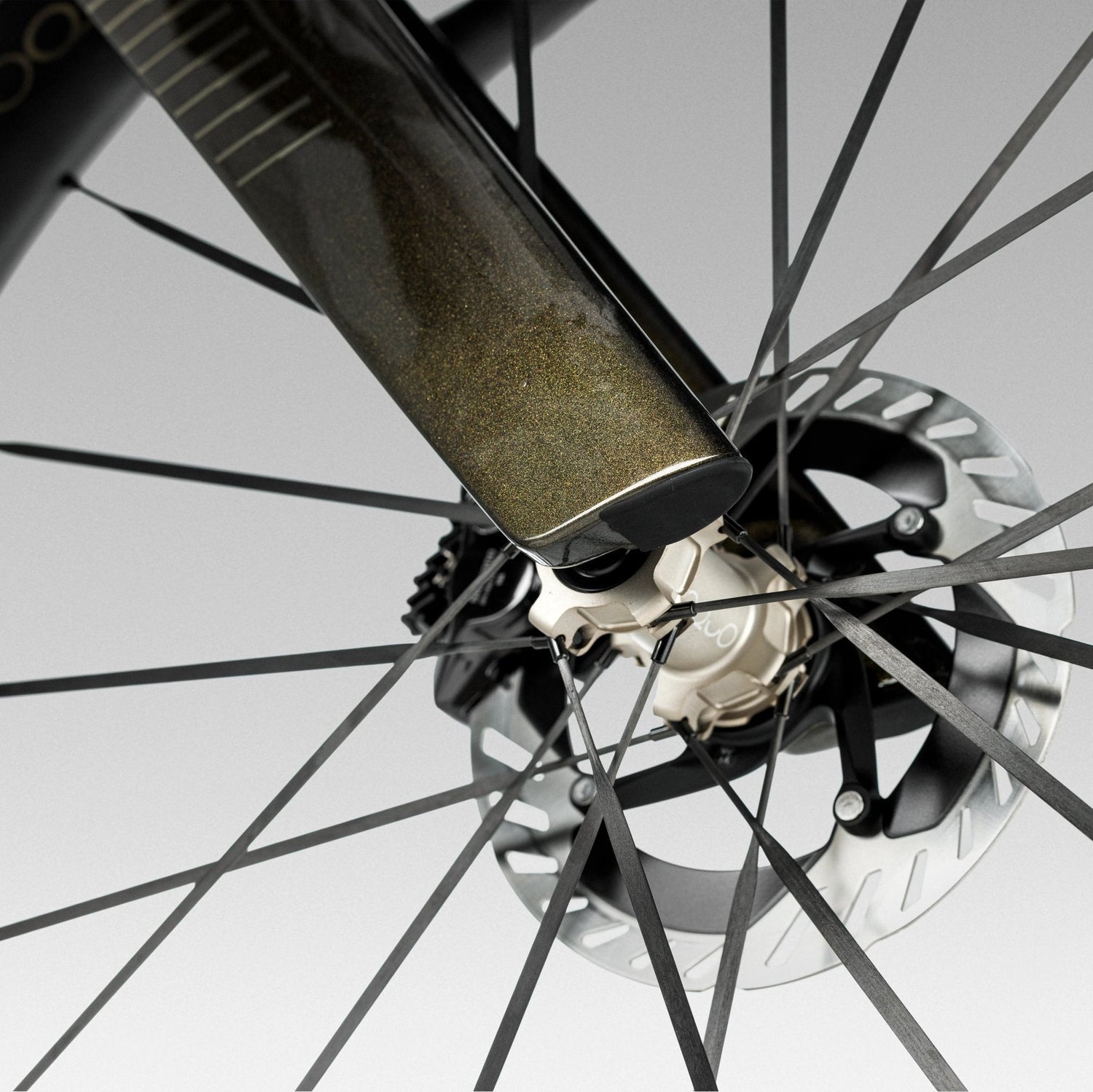

- Brake rotors: 160mm Front /140mm Rear
- Wheels: Oquo Road Aero RA57LTD Carbon Spokes White.
- Tires: Vittoria Corsa Pro Speed 29-622 TLR wide rim G2.0 OEM HP
- Quick releases: Orbea Thru Axle M12x1 Lite

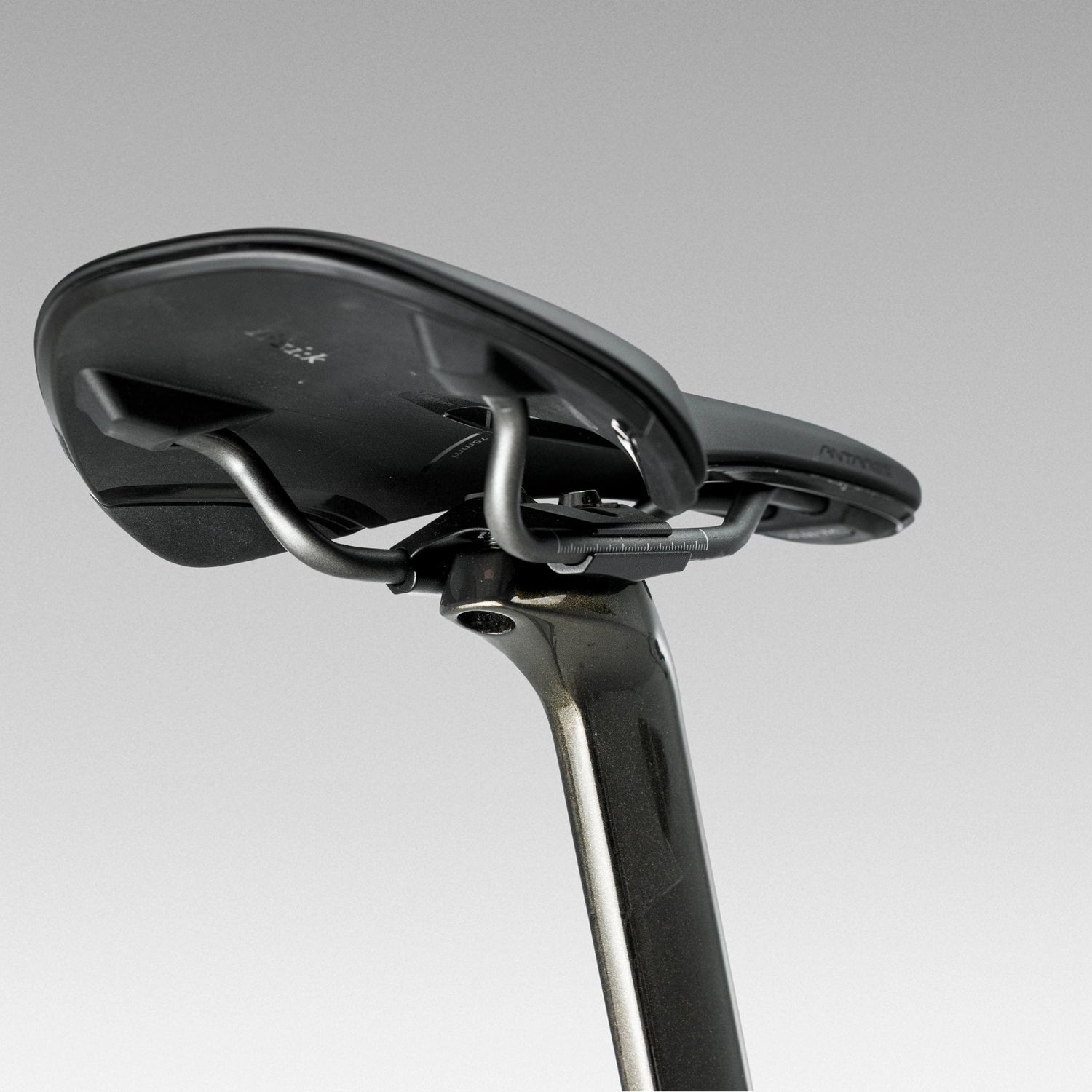

- Saddle: Fizik Vento Antares R1 Carbon Rail 140mm
- Seatpost: OC Road Aero RA11 Carbon, SB25
- Toolbox: OC Toolbox SB04
- Color: gold.
